Description
Product Description

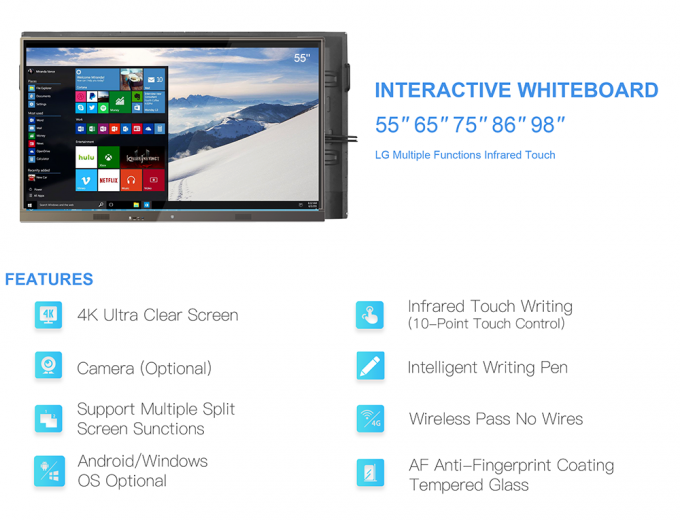

- The ultra-narrow frame design is simple and beautiful, infrared 20 touch, high sensitivity writing is smoother
- 4K HD display, AG anti-glare tempered glass, Mohs grade 7 hardness, the picture is more soft and clear
- Dual system Windows and Android switch freely, integrated in computer, Android TV, touch screen and electronic whiteboard
- With double magnetic suction pen in front, the touch pen is more convenient to pick and place before and after use
- Computer modular design, OPS / pull-out PC setting, simple and convenient maintenance
- Used for Conference training/ Classroom Teaching
- –Accessories: microphone(optional) , camera(optional) , wireless screen(optional) , Bracket (optional)
Specifications
|
Screen size
|
55’’/65’’75’’/86’’/98’’
|
|
CPU
|
intel i3; (intel i5/i7 option)
|
|
RAM
|
4GB RAM; (8GB/16GB option)
|
|
Memory
|
120GB SSD;(240GB SSD/1TB HDD option)
|
|
Windows OS
|
Windows 7/10 without license( license option)
|
|
(Android OS option)
|
MSD 648 Quad core
|
|
Android
|
Android 6.0
|
|
Touch Technology
|
Infrared touch
|
|
Touch points
|
10/20 points
|
|
Input way
|
finger touch,pen,or any opaque object
|
|
Touch life times
|
Over 60,000,000 times
|
|
Touch response speed
|
8ms
|
|
Display Type
|
LED
|
|
Resolution
|
1920*1080 FHD (3840*2160 UHD option)
|
|
Brightness
|
400(cd/m2)
|
|
Ratio of display
|
16:09
|
|
Best viewing angle
|
up:89 down:89; left:89 right:89
|
|
Max. viewing angle
|
178°
|
|
Contrast ratio
|
5000:1TYP
|
|
Glass type
|
4mm tempered glass
|
|
Glass transmittance
|
95%
|
|
Front Buttons:
|
|
|
PC power button*1;Volume up*1;Volume down *1;Memu*1;Power on/off*1
|
|
|
Front ports:
|
|
|
HDMI*1;Touch out*1;MV in*1;USB2.0*3
|
|
|
Back ports(Ⅰ):
|
|
|
USB2.0 type B*1;USB2.0*2;HDMI*1;VGA*1
|
|
|
Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC)
|
|
|
DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1
|
|
|
Power of display
|
178W
|
|
Colors
|
16.7M
|
|
Life time
|
60,000h
|
|
Working voltage
|
50-60HZ 100-250V
|
|
Standby power
|
3W
|
|
Working temperature
|
0~45℃
|
|
Storage temperature
|
-20℃~60℃
|
|
Working humidity
|
5%-90%
|
|
Power of speaker
|
8Ω10W*2
|
|
Frame material
|
Alloy
|
|
Accessories
|
Wall bracket/movable floor stand/pen/remote control/WIFI antenna
|
|
Warranty
|
12 months
|
|
Package
|
30mm thickness Honeycomb box
|
