Description
Production spercification

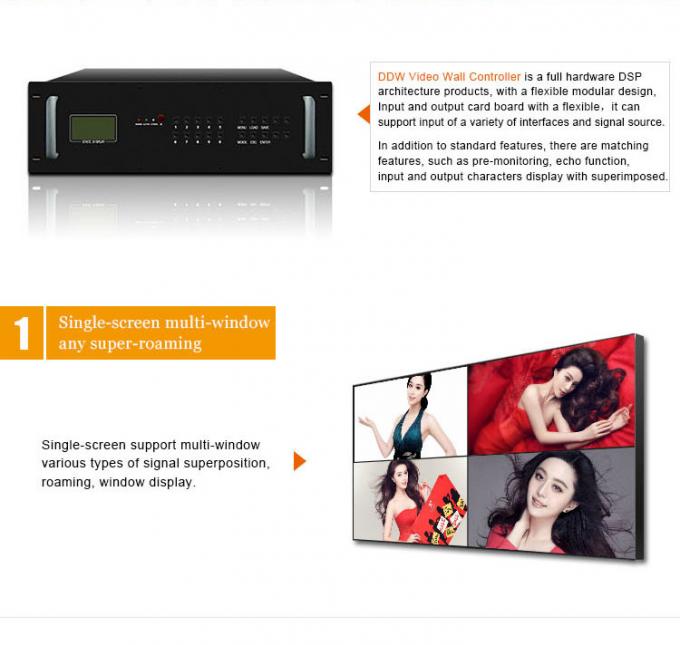

| Professional video wall controller Technical Specifications | ||
| Model series | With CBD | No CBD |
| Function description | 4channel CBD,16channel AV, | 16channel AV, |
| 12channel VGA/DVI input, | 16channel VGA/ DVI input, | |
| 6U case supports 12 screens arrays, | 6U case supports 16screens arrays | |
| compatible with ultrahigh resolution | ||
| 4000/(8000)x2000 Dynamic | ||
| background image | ||
| Input signal(optional) | /DVI/VGA/AV/YPbPr | |
| Input resolution | 1024×768~1080p,commonly used resolutions | |
| Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
| Output resolution | Up to 1920*1200/60HZ | |
| System control software | Special control software | |
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
| Consumption | 12W/channel | |
| Working temperature | -20°C——60°C | |
| Working Humidity | 5-95% | |
| Case specification | 4U/6U/10U/15U standard rackmount chassis | |
| Serial Control Interface | RS-232,9-pin female, Type-D | |
| Baud Rate | 115200 | |
| Pin configuration | 2=TX,3=RX,5=GND | |
| Ethernet control interface | RJ-45 female, TCP/IP | |
| Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
| Working time | 365*7*24hrs | |
| Technical specification of input/output connectors | ||
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640*480/60HZ—1920*1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024*768/60HZ-1920*1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Physical properties of input/output connectors | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |
Production description
